PAiA 4712 Reverb Module |
|

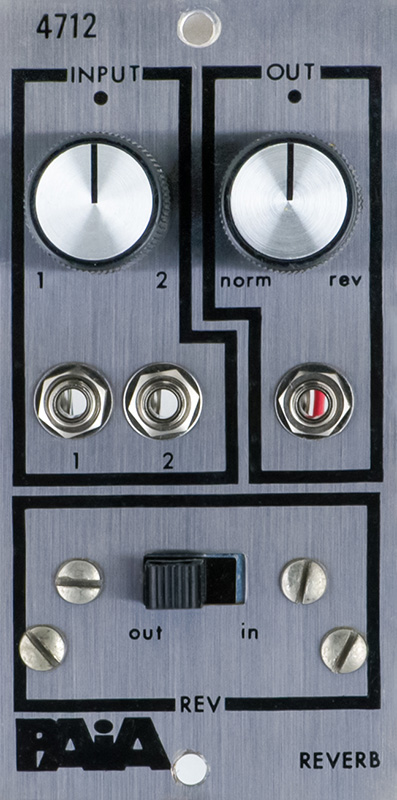

This module was advertised as "concert hall" acoustics with maximum flexibility. It consists of two units, the control head electronics and the reverb spring assembly. This kit was $25.95 in the 1976 catalog.
PAiA 4712 Reverb Module User Manual
PAiA 4712 Reverb Module Schematic

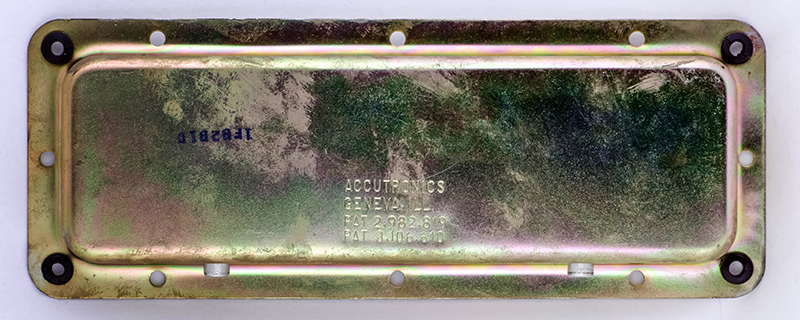

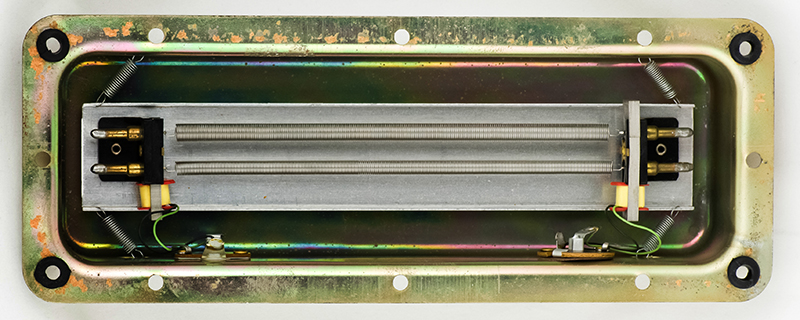

The reverb tank is an Accutronics 1FB2B1D.
The Accutronics model 1FB2B1D specifies:
| Digit | Specification |
| 1 | Type 1 case 9.25" x 3.375" x 1.313" |
| F | Input impedance 1475 ohms |
| B | Output impedance 2250 ohms |
| 2 | Medium delay 1.75 - 3.0 seconds |
| B | Input grounded, output floating |
| 1 | No lock |
| D | Vertical mounting with connectors down |

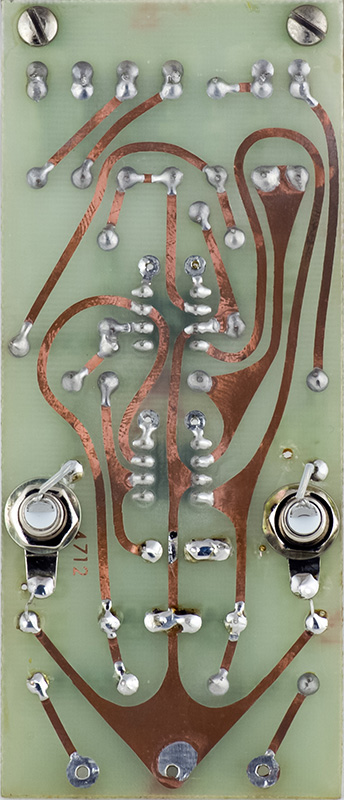

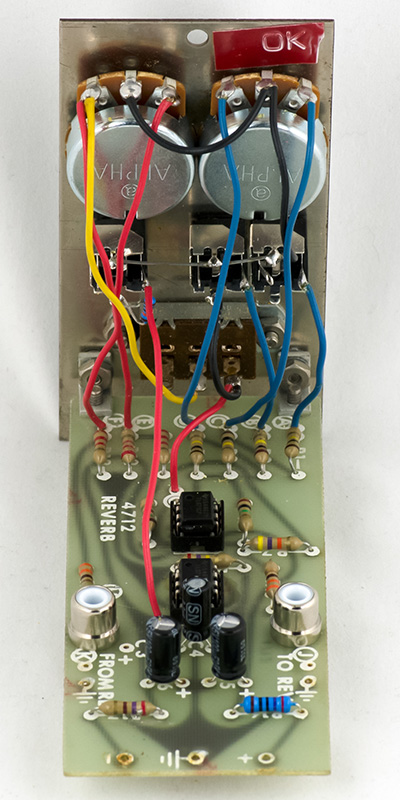

The original module had RCA cables soldered to the PCB but I changed them to PCB mounted female RCA connectors so a longer cables could be used for mounting the reverb tank. One of the RCA jacks crowds C3 but I used a bipolar capacitor for C4 so omitted C3 anyways.
