Octaver Module

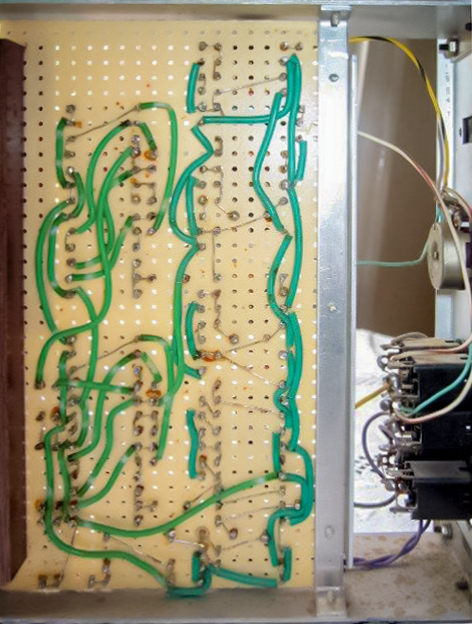

These photos are courtesy of Tom Szakaly ( ELP tribute 'Noddy's Puncture). Tom has a unique Octaver hand-built in a 902 VCA chassis.  The module was constructed on perfboard and has Dymo labels and tape on the panel.  It is a microphone preamplifier with two signal outputs and two sub-octave outputs for 8VA and 16VA.
