Moog 959 XY Controller

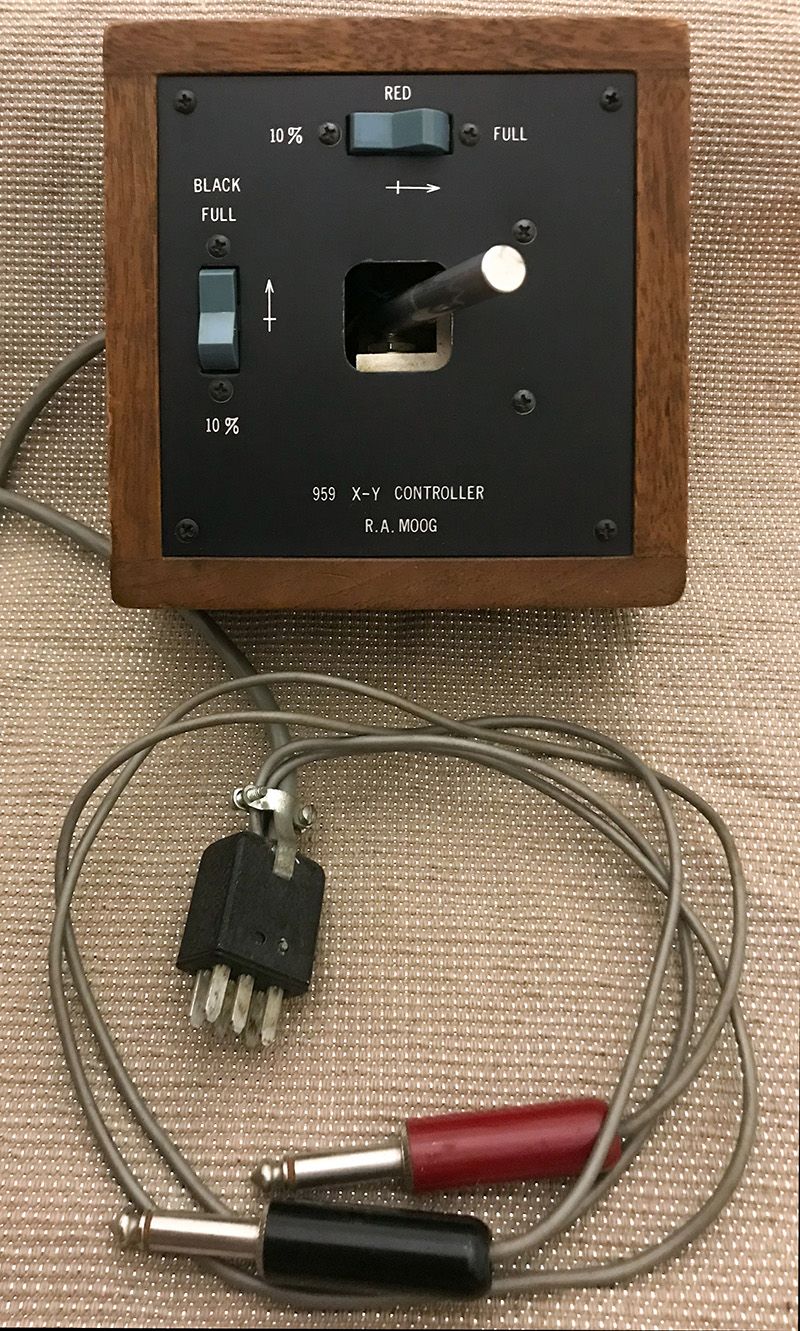

These photos are courtesy of Pasquale Rosa. This XY Controller required external power and provided two CV outputs. The 6 pin Cinch connector could be plugged directly into a MiniMoog.



Two switches either provide full CV range or 10% range.

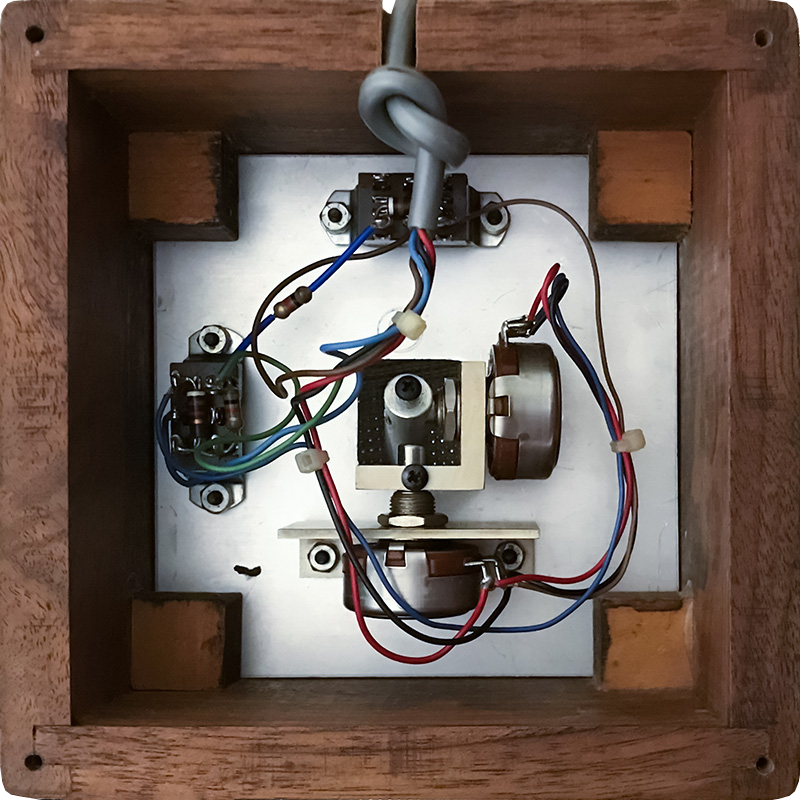

Construction is quite simple.





The tag is on the inside of the rear cover.
