CEMS Timing System
Cabinet 1

These photos are courtesy of Pasquale Rosa. Cabinet 1 is the timing system which consists of a 4 digit wide-range clock for complex sequences of timing and control signals. This description is from the CEMS Specification.



Timing Controller (high resolution image)

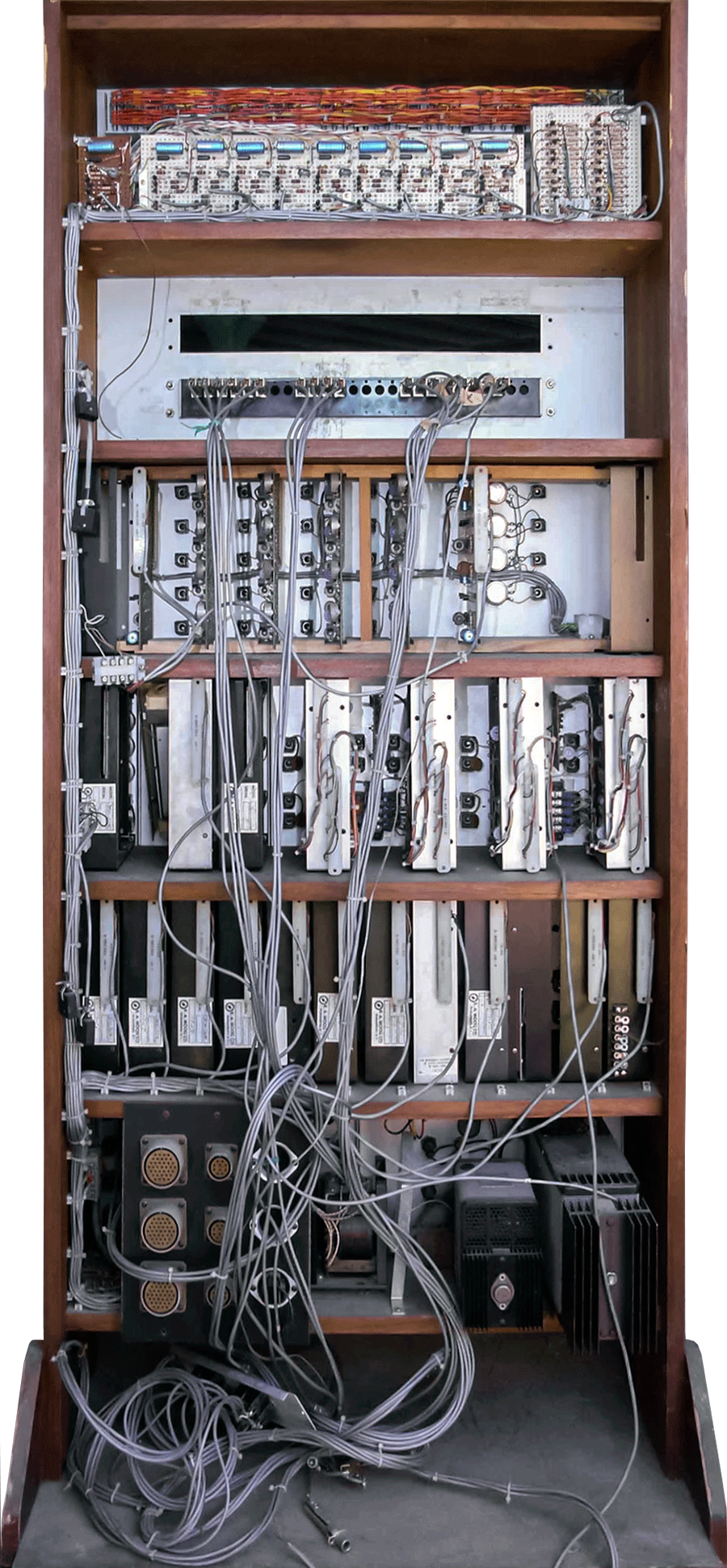

This rear view of the timing controller shows the various trunk lines to the other cabinets.



I made a composite photo by combining two higher resolution photos.

Timing Controller rear (high resolution image)
